EK6 Up to 100Mile,35mph

$799.00 USD

Sale Sold out

Shipping calculated at checkout.

Color Orange Gray

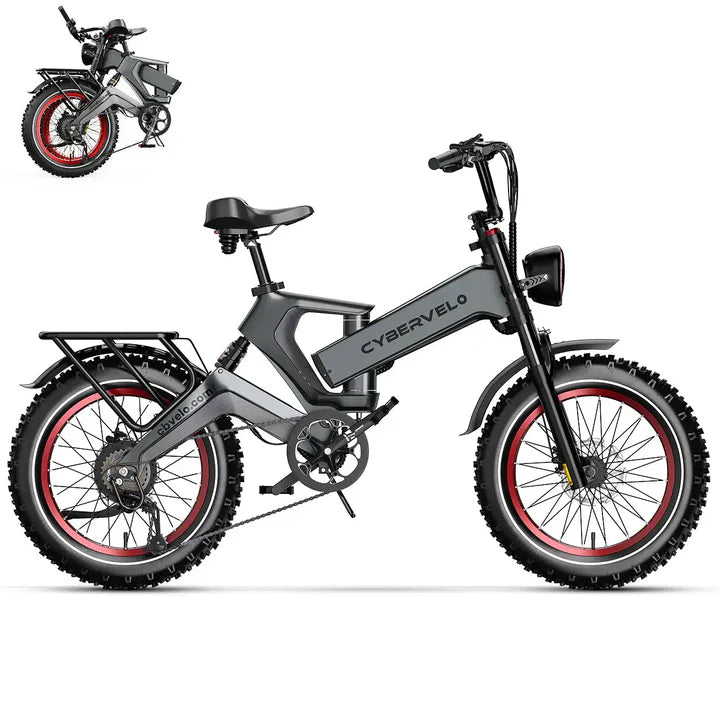

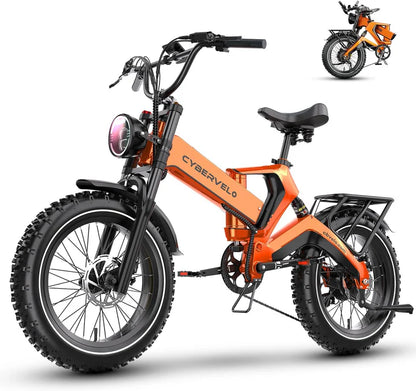

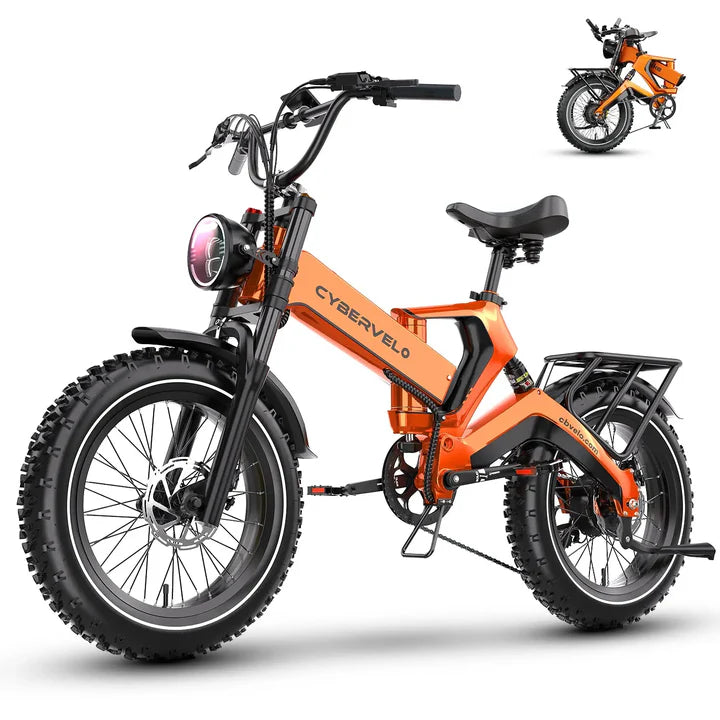

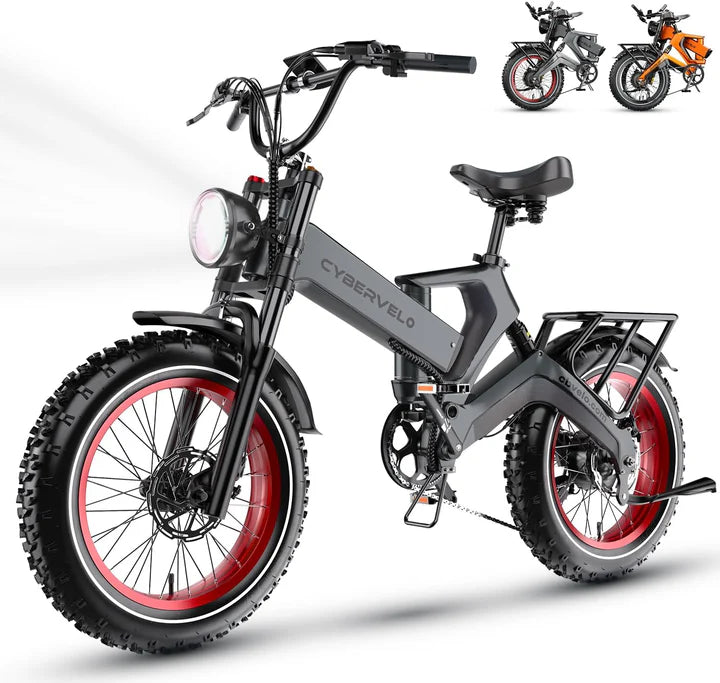

EK6 Max 2.0 — 20″×4.0″ Fat-Tire Folding Electric Bike — 1000W Motor · 48V 25Ah · up to 36 mph

All-magnesium folding frame, 1000W rear hub (up to ~2200W peak), high-capacity 48V 25Ah battery, LCD, lighting, and commuter-ready setup.

1000W

Rear hub (peak ~2200W)

48V 25Ah

Removable battery

Up to 36 mph

Top speed (listed)

60–100 mi

Range (listed)

20×4.0″

Fat tires

Hydraulic

Logan 180 mm discs

7-speed

Shimano drivetrain

400 lb

Max payload

Why riders pick the EK6 Max 2.0

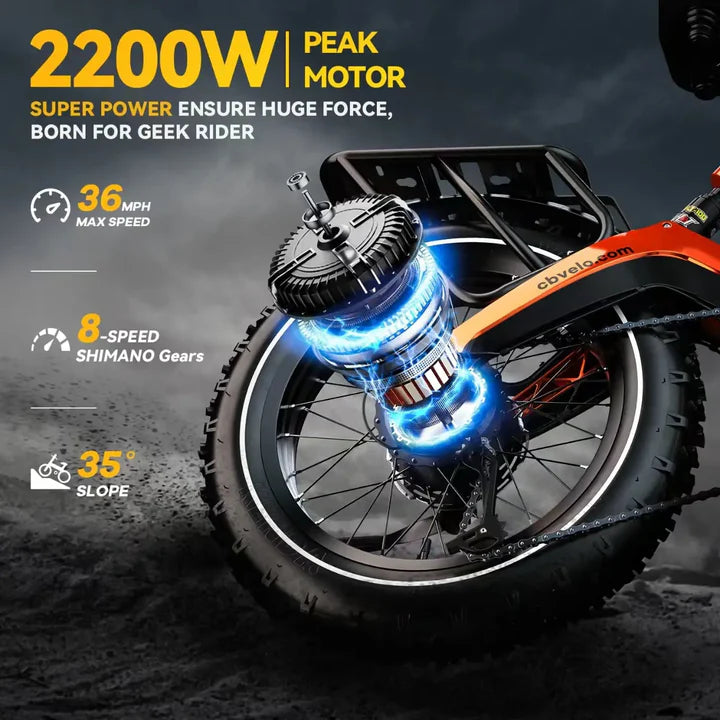

1000W brushless hub (up to ~2200W peak)

Confident launches, strong hill performance; listing quotes up to ~36 mph on flats (rider/terrain dependent).

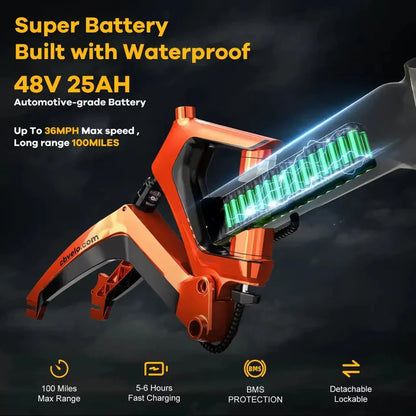

48V 25Ah removable battery

Long-range pack with off-bike charging; listed ~60 mi electric and up to ~100 mi with pedal assist.

20×4.0″ fat tires + folding magnesium frame

Wide footprint adds grip and comfort; frame folds quickly for car trunks, apartments, or transit.

Hydraulic disc brakes

Logan 180 mm setup with motor cut-off levers for consistent stopping.

Shimano 7-speed + 5-level PAS

Ride your way: throttle only, pedal assist, or pedal; LCD shows speed, power, battery, and trip.

Lighting & comfort

48 V LED headlight, rear light, adjustable-height bar, soft PU saddle, fenders and rack for daily use.

Use high-speed modes off-road/where legal. Always follow local e-bike regulations.

Tech specs

Motor	1000W rear hub (peak ~2200W)
Battery	48V 25Ah removable lithium
Controller	48V / 20A
Top speed (listed)	Up to ~36 mph
Range (listed)	~60 mi electric; up to ~100 mi PAS
Max torque	~96 N·m
Assist / Throttle	5-level PAS; twist throttle; motor-cutoff brake levers
Drivetrain	Shimano 7-speed freewheel; KMC chain
Brakes	Logan hydraulic discs, 180 mm
Tires	20×4.0″ fat tires
Frame	Foldable all-magnesium-alloy frame
Fork	High-carbon-steel front fork
Display	LCD (speed, battery, distance, time, power, error detection)
Payload	Max 400 lb
Product weight	~70 lb (with battery)
Rider height	Recommended ~5'1″–6'5″
Charger	5–6 hours (typical)
Included	E-bike, battery, charger, front light, pedals, user manual, basic toolkit

The brand page mixes values in different sections (e.g., some parts list 48V 20Ah & 80-mile estimate, 20×3.0″ tires, and 330 lb payload). The KPIs/specs above follow the main “Max 2.0” listing claims.

Size & Fit

Rider height silhouettes for EK6 Max 2.0 — Recommended rider height: about **5'1″–6'5″**.

Payload, weight, range overlay for EK6 Max 2.0 — Payload up to **330 lb**; product weight about **69.9 lb**; estimate range **60–80 mi**.

Geometry

A — Total length	~63″
B — Max handlebar height	~40–49″
C — Rear rack height	~23″
D — Max seat height	~41″
E — Min seat height	~32″
F — Frame/step height	~25″
G — Handlebar length	~24″
H — Wheel diameter	20″
Folded (L × W × H)	~37″ × 20″ × 26″
